Franquency Range: 1.0-10.0GHz

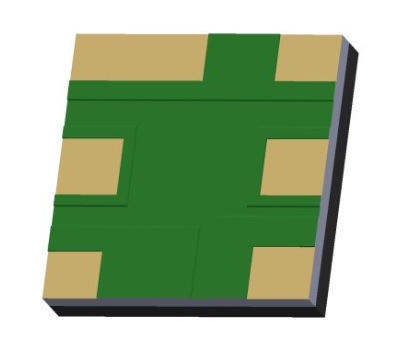

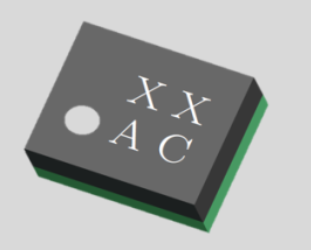

MaxLink BAW/FBAR Filters Selection Guide Catalogue
★ Please send your technical specification for an inquiry or a custom-design
Frquency Range: 1.0GHz - 10.0GHz
Bandwidth Ratio:0.02%-50.00%
Items | Normal SAW/STD SAW | FBAR | SMR BAW | TC-FBAR |
Structure/ Process |  |  |
|
|
Frequency Range | 700MHz~2.7GHz | 1GHz~10GHz | 1GHz~10GHz | 1GHz~10GHz |
Insertion Loss | Normal | Lowest | Lower | Lower |
RF Power | Normal | Higher | Highest | Higher |
Frequency Drift | -40ppm/℃ | -20ppm/℃ | -10∽-15ppm/℃ | <±3ppm/℃ |
MaxLink BAW Filter Part Number System | |||||
M | BA | 1G95 | B | S | P3 |
① | ② | ③ | ④ | ⑤ | ⑥ |
MaxLink | BA: BAW Filter SF: SAW Filter | Center Frequency 1G95=1.95GHz 881M=881MHz | Design Version | S: Unbalanced D: Balanced | Package Size P1: 1.4*1.1 P2: 1.1*0.9 P3: 1.8*1.4 P4: 1.5*1.1 P5: 1.6*1.2 P6: 0.9*0.7 P7: 2.5*2.0 P8: 2.0*1.6 |
Product List :
Band | Type | Part Number | Package Size | Frequency PassBand | Terminal Impedance | RF Power(dBm) |
N41-160MHz | BAW Filter | MBA2G59AASP1 | 1411 | 2515MHz-2675MHz | Unbalanced | 33 |
N77 | BAW Filter | MBA3G45AASP1 | 1411 | 3300MHz-3600MHz | Unbalanced | 33 |
B3_CMCC_UL | BAW Filter | MBA1G72AASP1 | 1411 | 1710MHz-1735MHz | Unbalanced | 32 |
B3_CMCC_DL | BAW Filter | MBA1G81AASP1 | 1411 | 1805MHz-1830MHz | Unbalanced | 32 |
B39_CMCC | BAW Filter | MBA1G90AASP1 | 1411 | 1885MHz-1915MHz | Unbalanced | 32 |
B40_CMCC | BAW Filter | MBA2G34AASP1 | 1411 | 2320MHz-2370MHz | Unbalanced | 30 |
B1_UL | BAW Filter | MBA1G95AASP2 | 1109 | 1920MHz-1980MHz | Unbalanced | 31 |
B1_DL | BAW Filter | MBA2G14AASP2 | 1109 | 2110MHz-2170MHz | Unbalanced | 31 |
B3_CU+CT_UL | BAW Filter | MBA1G76AASP1 | 1411 | 1735MHz-1785MHz | Unbalanced | 32 |
B3_CU+CT_DL | BAW Filter | MBA1G86AASP1 | 1411 | 1830MHz-1880MHz | Unbalanced | 32 |
B42/N78(200MHz) | BAW Filter | MBA3G50AASP1 | 1411 | 3400MHz-3600MHz | Unbalanced | 31 |
B1 | BAW Duplexer | MBA1G95AASP3 | 1814 | Tx 1920MHz-1980MHz Rx 2110MHz-2170MHz | Unbalanced | 31 |
B1 | BAW Duplexer | MBA1G95AASP5 | 1612 | Tx 1920MHz-1980MHz Rx 2110MHz-2170MHz | Unbalanced | 31 |
B3 | BAW Duplexer | MBA1G74AASP3 | 1814 | Tx 1710MHz-1785MHz Rx 1805MHz-1880MHz | Unbalanced | 30 |
B3_CMCC | BAW Duplexer | MBA1G77AASP3 | 1814 | Tx 1710MHz-1735MHz Rx 1805MHz-1830MHz | Unbalanced | 30 |
B3_CU+CT | BAW Duplexer | MBA1G76AASP3 | 1814 | Tx 1735MHz-1785MHz Rx 1830MHz-1880MHz | Unbalanced | 30 |
WiFi | BAW Filter | MBA2G45FASP2 | 1109 | 2401MHz-2483MHz | Unbalanced | 27 |
Beidou II S Band (8MHz) | BAW Filter | MBA2G49AASP9 | 3030 | 2488MHz-2496MHz | Unbalanced | 32 |
Beidou III S Band (16MHz) | BAW Filter | MBA2G49FASP9 | 3030 | 2484MHz-2500MHz | Unbalanced | 32 |
N256-UL | BAW Filter | MBA1G99AASP9 | 3030 | 1980MHz-2010MHz | Unbalanced | 32 |
N256-DL | BAW Filter | MBA2G19AASP9 | 3030 | 2170MHz-2200MHz | Unbalanced | 32 |
Satellite S Band | BAW Filter | MBA2G25AASP9 | 3030 | 2200MHz-2300MHz | Unbalanced | 32 |
